Products > Paper Converting Machinery > Cardboard Case Making Machine > UFJ600A Semi Automatic Gluing Machine

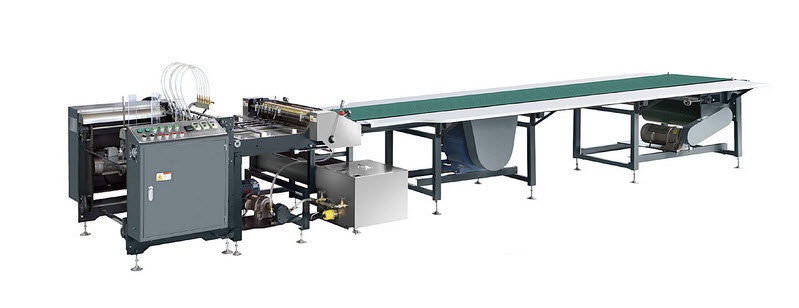

Product name : UFJ600A Semi Automatic Gluing Machine
Item : 2013627175957
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 This semi automatic gluing machine is widely used in the industry of manufacturing file boxes, folders, dress boxes, shoe boxes, gift boxes and book case etc.



Features:

1. Automatic feeder fits well different sized sheets.

2. Rollers can be adjusted to apply mount required on the sheet surface.

3. Glue circulation system with temperature controller supplies glues quite evenly and constantly.

4. Conveyor equipped with air-suction system to delivery sheet smoothly and stably.

5. Equipped with ball bearing structure of feeding table, the sheets can be conveyed straightly by pressure system.



Parameters

Model

 UFJ-600A

Sheet Thickness

 80-200g

Max Sheet Size

600*900mm

Min Sheet Size

50*100MM

Speed

 0-40unis/minute

Power

 9KW/380V

Size

 6000*1650*950mm

 Weight

  850kg
