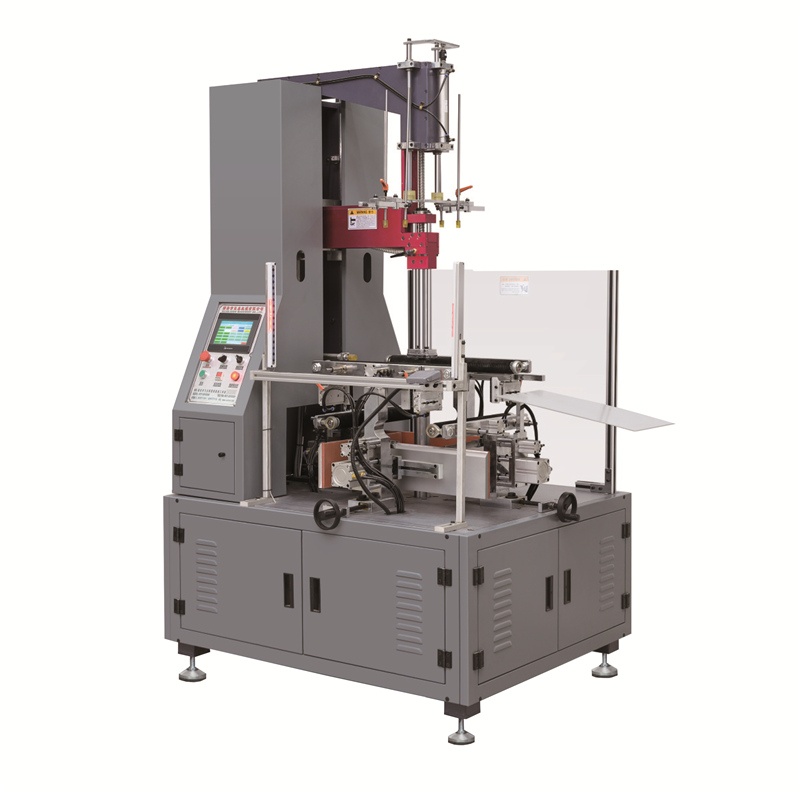

Product name : USM500 Box Wrapping Machine
Item : 2013626195422
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 Features:

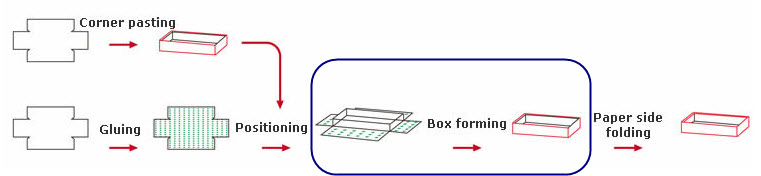

This machine is mainly used for forming and wrapping the face paper onto the square shaped box like shoe box and gift boxes etc. It is equipped with imported vacuum system to suck the inner box automatically. There are two ways to run the pressing process--pedal step control and automatic control. Brush is equipped to press the face paper stick firmly on the inner boxes. The whole process is quite smoothly and in past speed.



Parameters:

Model

 USM-500

Minimum box size

 100x80x15mm

Maximum box size

 460x400x100mm

Speed

 20~40 units/minute

Power

 1.1KW/380V

Dimension

 1100x1100x2350mm

Weight

600kg
