Features:

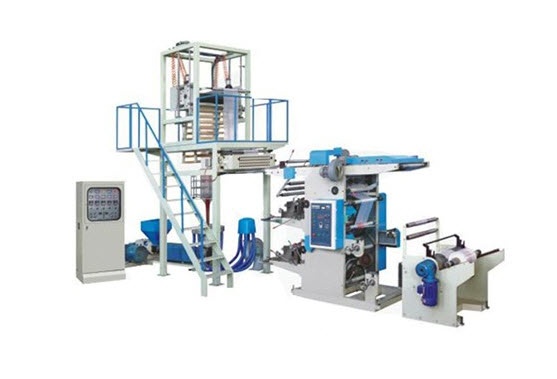

This machine unit is suitable for blowing low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE) plastic films. The plastic films can be widely used for civil and industrial packaging such as food, apparel, trash bags and vest bags etc. The machine unit is a well-designed film blowing and printing production line which saves labor force and improves the economic benefits of products.
Parameters:
|
Model
|
SJ50-YT2600
|
SJ55-YT2800
|
SJ65-YT21000
|
|
Material
|
LDPE、HDPE、LLDPE
|
LDPE、HDPE、LLDPE
|
LDPE、HDPE、LLDPE
|
|
Screw diameter
|
φ50
|
φ55
|
φ60
|
|
Screw L/D ratio
|
28:1
|
28:1
|
28:1
|
|
Motor power
|
11Kw
|
15Kw
|
18.5Kw
|
|
Output
|
40KG
|
50KG
|
70KG
|
|
Film head diameter
|
φ60-φ80
|
φ80-φ150
|
φ100-φ160
|
|
Film blowing width
|
550
|
800
|
1000
|
|
Film blowing thickness
|
0.008-0.10
|
0.008-0.10
|
0.008-0.10
|
|
Print length
|
191-1200
|
191-1200
|
191-1200
|
|
Printing width
|
550
|
800
|
1000
|
|
The total power
|
28KW
|
32KW
|
40KW
|
|
Whole weight
|
3.5T
|
4T
|
5T
|
|
Size(mm)
|
6000×2400×4000
|
8000×2400×4000
|
8500×2600×4600
|
