Product name : GPW10 DOUBLE HEAD HIGH FREQUENCY WELDING MACHINE
Item : 202542110145
 |
| Details: |

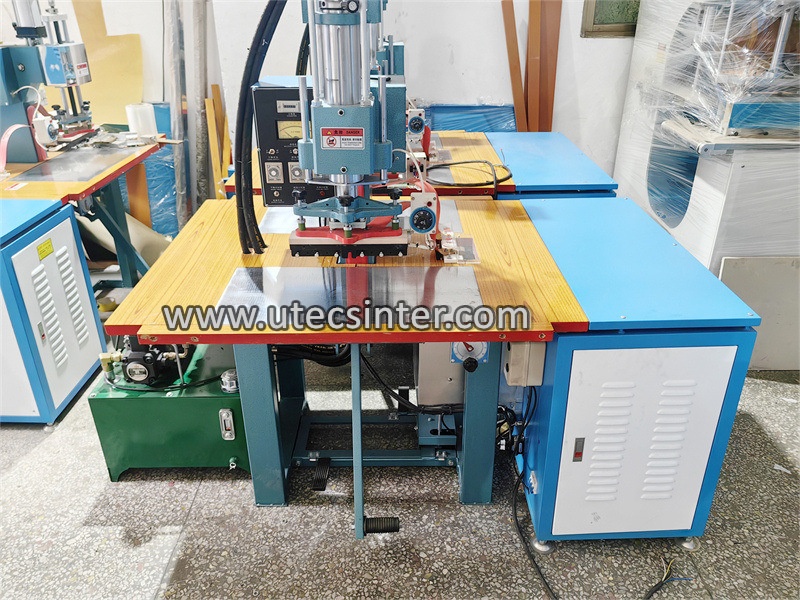

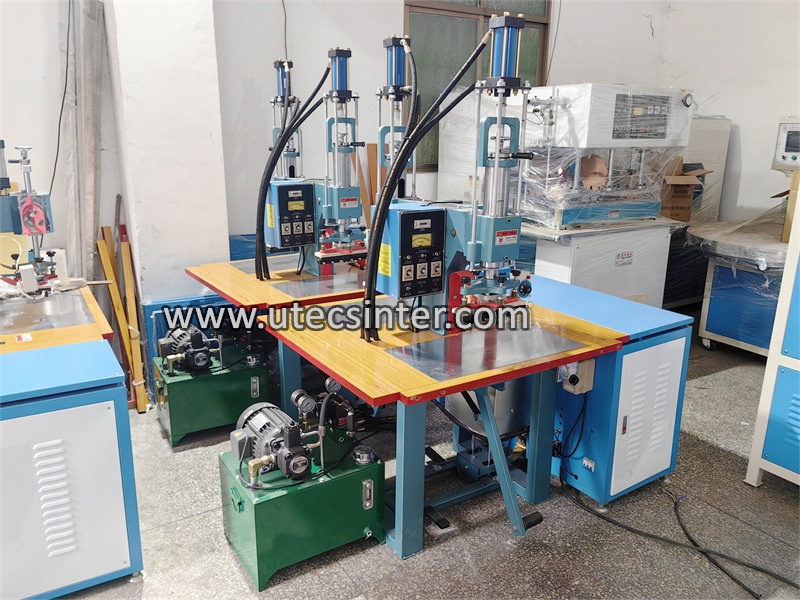

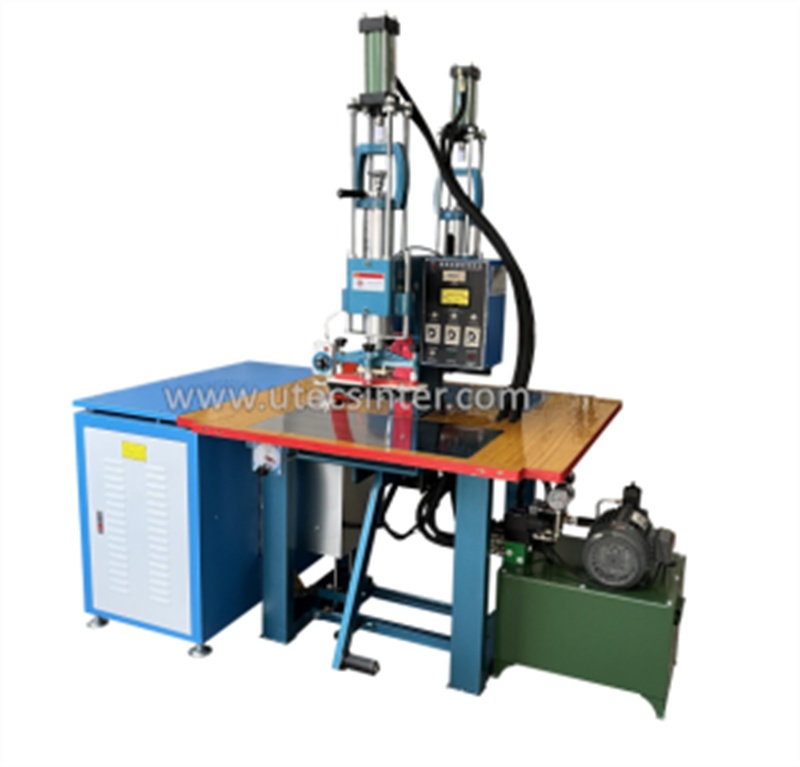

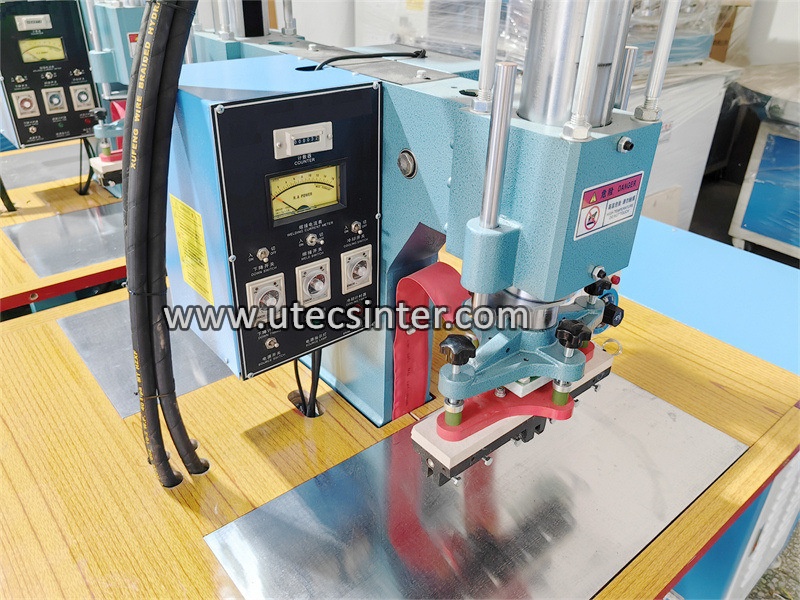

GPW10 DOUBLE HEAD HIGH FREQUENCY WELDING MACHINE
Description:
Our high frequency double head welding machine is divided into two types: air pressure machine and hydraulic machine. The high frequency welding machine adopts low loss European standard coaxial high frequency resonator. The high frequency output power is strong, which can weld the products in the fastest time, greatly improving the production output. The machine is equipped with a high frequency stabilizer and a high frequency shielding device. Minimize high frequency interference and avoid radio interference. At the same time, it can avoid frequency drift caused by improper operation, minimize electrode and material damage, and the warning light will also light up to warn. Scope of application:
1) Welding of pure PVC or soft and hard plastic containing more than 30%

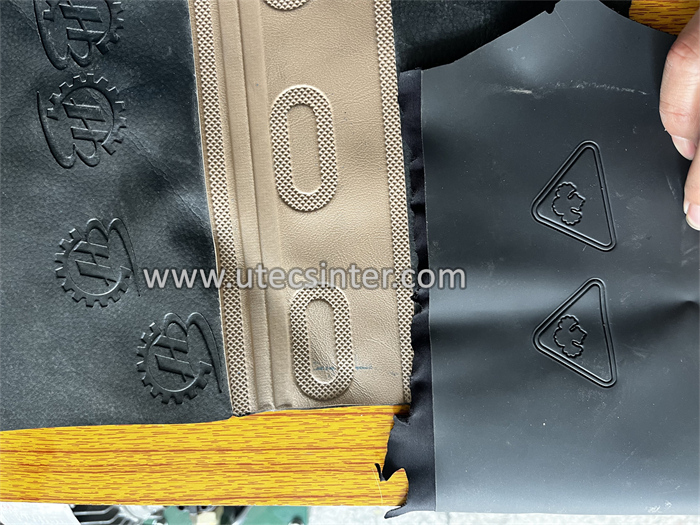

2) Leather embossing;
Mainly used for welding of PVC products such as handbags, soft plastic bags, Velcro, small jet toys,
headphone covers, hot water bottles, small blister packaging, ceiling films, large inflatable toys, etc., and can also be used for welding of cloth and PVC plastic parts and embossing of trademarks on leather materials. Model: GPW10
Maximum output: 2000KG
Upper electrode size: 120*290mm
Lower electrode size: 350*700mm
Activity size: 120mm
Voltage: 3ph, 380v, 50/60HZ
Power: 12KW
Frequency: 27.12MHZ   |
