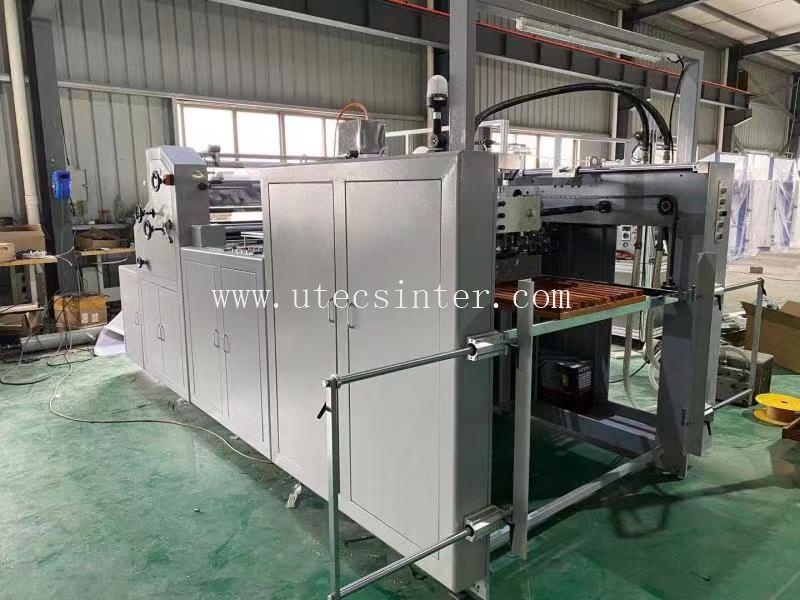

1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.

2. Automatic paper feeding system is equipped with no paper protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. When no paper, paper break or paper superposition occurs, the machine will stop automatically for self-protection.

3. Conveying table is furnished with air aspirator, side lay and front lay etc. to guarantee paper conveying and overlap stable and regular.

4. Automatic running includes automatic paper feeding, laminating and winding.

5. Glue supplying system supplies and recycles water-base glue automatically.

6. Dip coating saves glue and homogenizes coating much better.

7. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.

8. Film perforating wheel perforates film edge for the automatic cut of laminated paper.

9. Automatic paper winder rolls up laminated paper. Winding speed is adjustable upon applications.

10. Powerful UV drying lamp is equipped for smooth working in humid and cold climate.

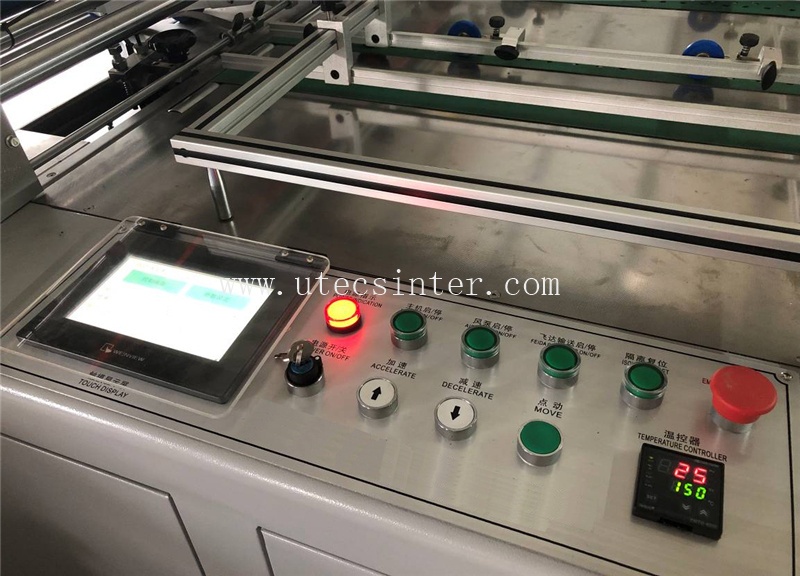

11. Imported reliable frequency converter is equipped for infinitely variable speed, and the operator can change the machine’s speed easily and guarantee the machine’s running stable.

12. The winded paper is supported by a trolley, and then put on cutting machine for quick automatic cut, or cut manually.

Parameters:
