HANGZHOU UTECS INTERNATIONAL CO., LTD

1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
2. Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.

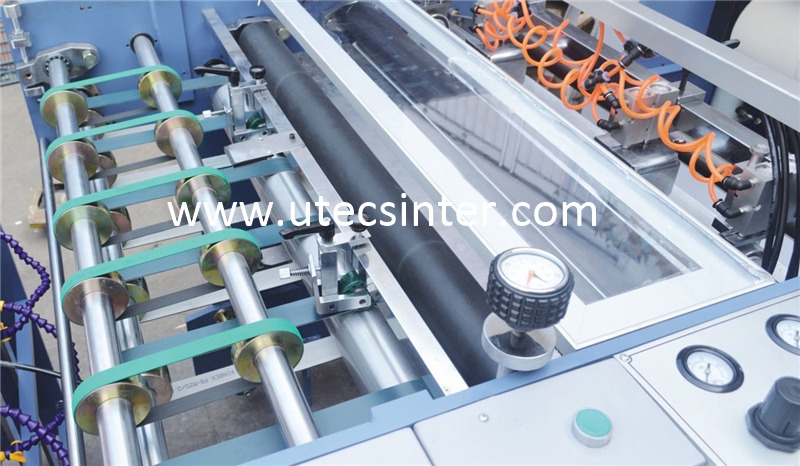

3. Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.
4. High-precision Chrome plated heating roller is equipped with built-in electrical tube heater which makes temperature rise instantly. The laminating temperature is adjustable against different application.
5. Pneumatic pressuring system brings a strong and steady pressure to guarantee good laminating quality.
6. Air shaft makes fill rolls loading and unloading more convenient.

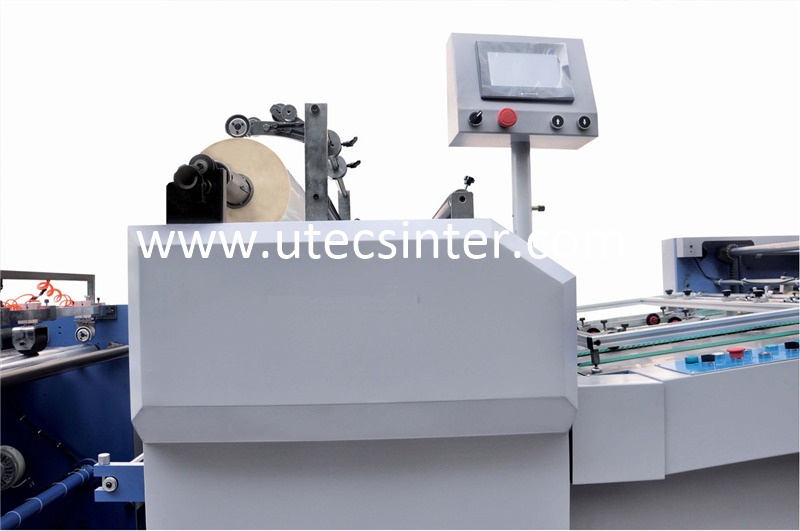

7. The combination of air shaft and braking device can adjust film release tension and speed.
8. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
9. Film perforating wheel perforates film edge for the automatic cut of laminated paper.
10. Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won’t curve again after cut.

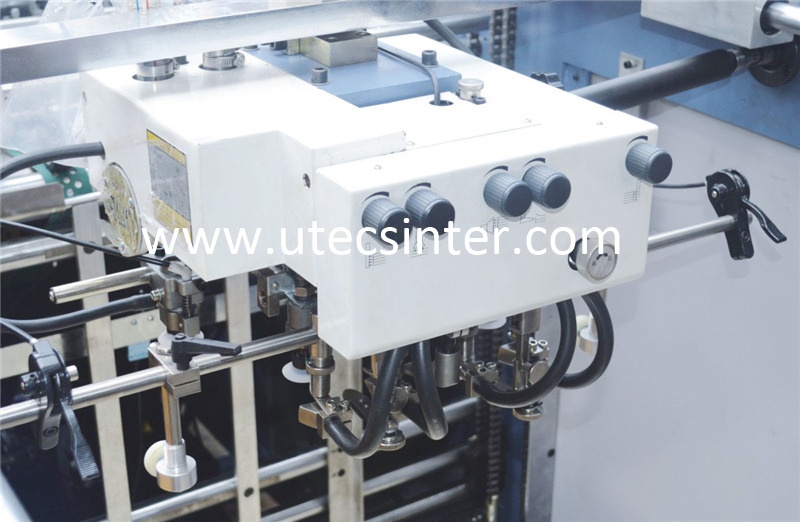

11. Pneumatic cutting system realizes automatic paper cut.
12. Automatic paper stacker equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable.

Parameters:
