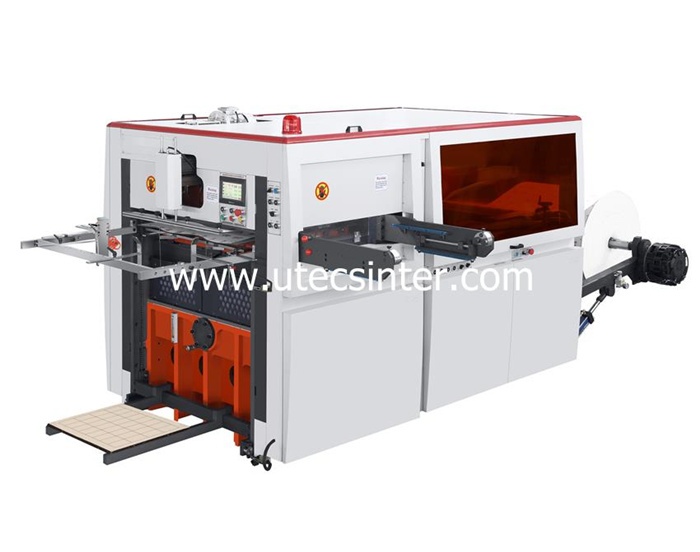

Product name : TMQ950 Automatic Paper Die Cutting Machine
Item : 20135249187
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Description:

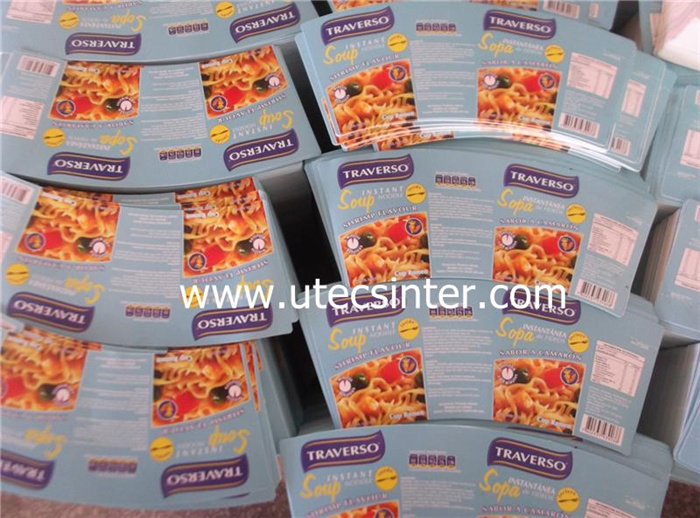

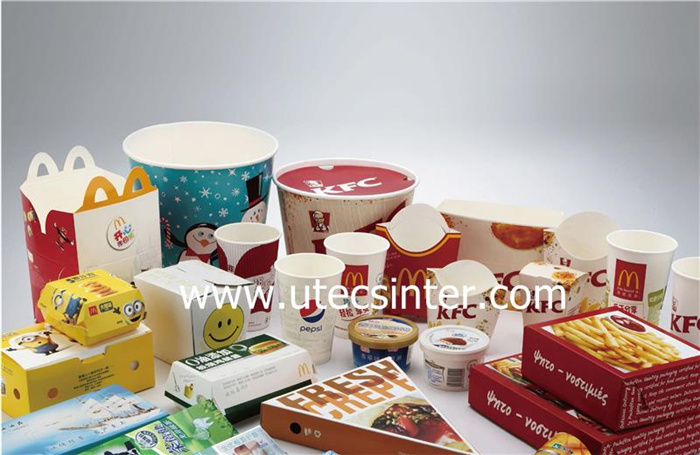

TMQ 950 series automatic roll feed flat die cutting machine is widely applied in producing cigarette and hamburger cases, pharmaceutical packaging boxes, envelopes, paper cup fans, paper bowl fans and various paper products with high precision and stability by die cutting creasing and embossing requirement. The machine could complete the die cutting, creasing, embossing and stacking in just one pass.



Parameters:

Model

TMQ950

TMQ1200

Cut Precision:

± 0.15mm

Speed

160-210 times/min

90-140 times/min

Maximum cutting size:

 940*510mm

 1160 *600mm


Max Feeding Width:

950mm

1200mm

Max unwinding diameter

1600mm

1600mm

Paper Weight

120-400GSM Paper and PE coated Paper

Maximum Pressure:

180T

Total Power:

12KW

12KW

Total Weight:

6T

6.5T

Dimension:

4500*2200*1800 mm

4500*2600*2000mm

Working Air Source:

Air pressure 0.5-0.7Mpa (Need to buy compressor)



Main Electrical Components:

Stepper motor

Schneider (Germany)

Pressure adjusting motor

Taiwan

Servo driver

Schneider (Germany)

Color Sensor

Sick(Germany)

PLC

Schneider (Germany)

Frequency converter

Schneider (Germany)

All other electrical parts

Siemens  (Germany)

Photoelectric switch

Leuze(Germany)

Main air cylinder

AirTAC (Taiwan)

Solenoid valve and other parts

AirTAC (Taiwan)

Pneumatic clutch

China

Main bearings

Germany

We reserve the right to change the component without notification in advance.
